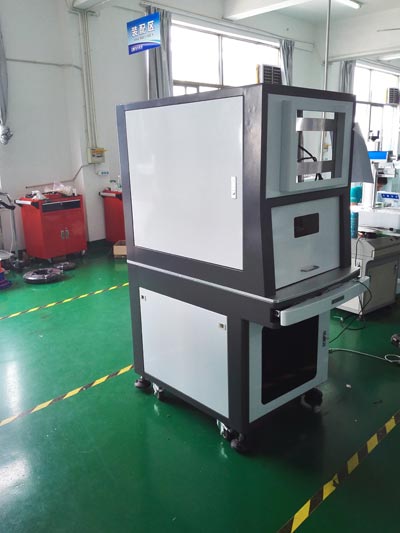

Enclosed
Feature:
- Good laser beam and higher photoelectric conversion, the marking quality will be more finely and higher precision
- Air cooling,no water chiller.
- No maintenances (100,000 hours service time);Low operation cost
- High quality, permanent marks.
- Repetitive high precise,Rapid marking speed
- Easy to use by unskilled operator .
- Non-contact marking process, eliminates material stress .
- Multifunctional marking software;Software running on the WINDOWS platform, English interface, compatible with Coreldraw, AutoCAD, software such as Photoshop file; PCX, DXF, support PLT, BMP, SHX, TTF font can be used directly;
- Marks directly to product, eliminates labels-cost .
- Automatic serialization/date.
- Adaptable to various automated production line system including Mark-on-fly -parts moving .
- Marks directly to product, eliminates labels-cost .
- This model can achieve automatic arrangement and modification of text, logo, symbols ,images, graphics, bar code, two dimensional barcode, serial number automatically increasing, etc.
Model |
E-10W |
E-20W |
E-30W |
E-50W |
|---|---|---|---|---|
Wavelength |
1064nm |
|||
Output Power |
10W |
20W |
30W |
50W |
Power adjustment range: |
10-100% |
|||
Repeat frequency: |
20-100KHz |
|||
Electricity source |
110V or 220V/50HZ/2kVA |
|||
Marking Depth |
≤00.3mm |
≤0.1mm |
≤1.2mm |
|
Min. focus flare: |
0.005mm |
|||
Min. character size: |
0.05mm |
|||
Repeat frequency: |
±0.001mm |
|||
Max.Linear speed: |
8000mm/s |
|||
Format |
Support PLT,PCX, AL, DXF, BMP,JPG formats file |
|||
Marking range(MM) |
(standard)70mm×70mm; optional 110mmx110mm |
(standard)110mm×110mm; optional 140mmx140mm;175x175mm |
(standard)110mm×110mm; optional 140mmx140mm;175x175mm;200x200mm; |
(standard)110mm×110mm or 140mmx140mm;optional 175x175mm;;300x300mm; |
Power supply: |
110V or 220V±10%/50Hz/4A |
|||
Power consumed |
≤800W |
|||
Cooling: |
air cooling |
|||
Format |
USB |
|||
Laser module life: |
＞100000hours |
|||
Working table: |
Manuel up and down aluminium alloy working table |
|||
Control system: |
Digital offline control |
|||
Z axis lifting |
130mm |
|||
Warranty |
2 years |
|||
| www.cncoletech.com | ||||

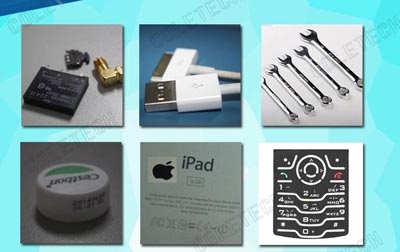

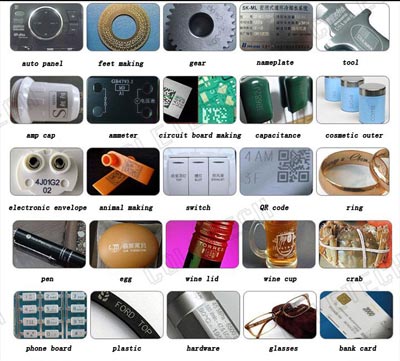

Applicable materials:
Jewelry; craft; medicine; cosmetics industries; car and motorcycle parts industry; sanitary ware; stationery; clock and watches, glasses industry; instrumentation industry, the electronic components industry; electrical appliances; communication products; jey industry;
Material:
Metal |
Non-metal |
Aluminum |
Polybutylene Terephthalate |
Stainless |
Makrolon polycarbonate |
Copper |
Black/White ABS |
Silicon Steel |
Nylon |
Yellow Chromate Aluminum |
Polysulphone |
Brass |
Rynite PET |
Nickel Plated Brass/Gold/Kovar/steel |
Santoprene |
Nickel Plated 1215 Mild Steel |
Silicon Carbide |
Hard coat anodized aluminum |
Glass filled teflon |
Machine Tool Steel |
White PEEK |
Magnesium |
Glass filled PEEK |
Metal Plated Ceramics |
Silicon Wafers |
Molybdenum |
Carbon Nanotube |
Carbon Fiber/Carbon Nanotube |
Colored Delrin |
Clear coat anodized aluminum |
GE Plastics Polycarbonate Resin 121-R |
Cobalt Chrome Steel |
|
Compacted Powder Iron /Iron Phosphate Coating |
|
